Product Description

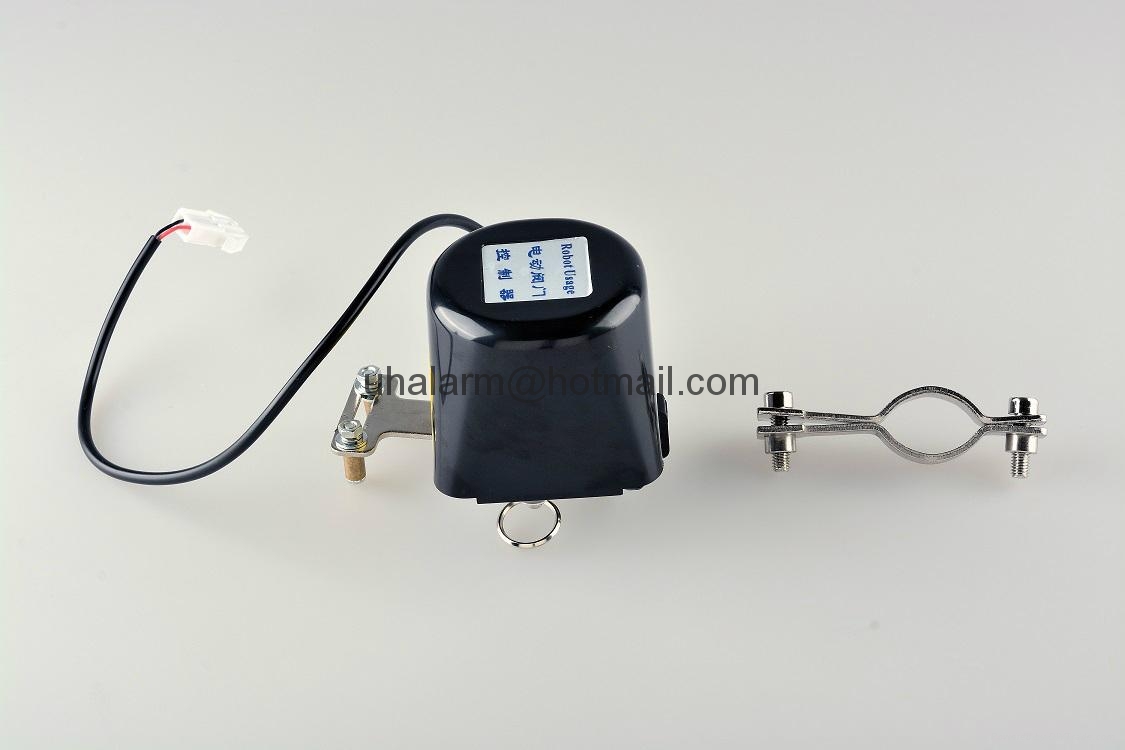

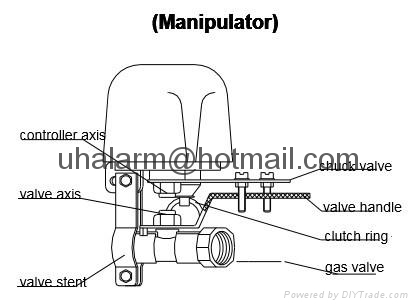

UH Mechanical valve(gas valve shutoff controler) can call electric valve, manipulator, shutoff valve. Mechanical valve can be installed in the gas pipe. Manipulator work with gas detector to shut off gas source supply for safety.

Features:
* Using steel casting gear
* Fixed design
* Electric reset with household gas alarm or detector
* Strong control ability
* Shutoff valve intensity

Specifications:
* Model: UHJXS
* Trademark: UH
* Size: 100mm*90mm*70mm
* Rated voltage: DC12V
* Working voltage: DC8V~DC16V
* Working current: 20mA~350mA~1000mA
* Working power: 0.24W~4.5W~10W
* Torque: 10~30~40kg. Cm
* Automatic closing valve time: 3~8S
* Motor opening valve time: 3~8S
* Tolerances: DC600V
* Working conditions: Temperature: -25° C ~ 85° C; Humidity: < 95%RH
* Packing: 1 pc in standard box, 50pcs in export carton
* Weight: 0.35Kg/pc, 22Kgs/export carton

If interested, please contact us. We will supply mechanical valve / shutoff valve with high quality and reasonable price.

Price Terms︰ Exw Shenzhen or FOB Shenzhen

Payment Terms︰ TT/LC

Packing︰ 1 set in standard box

Lead Time︰ Within 3 working days

SKU︰ set

Standards Certificate︰ ISO

Product Image
